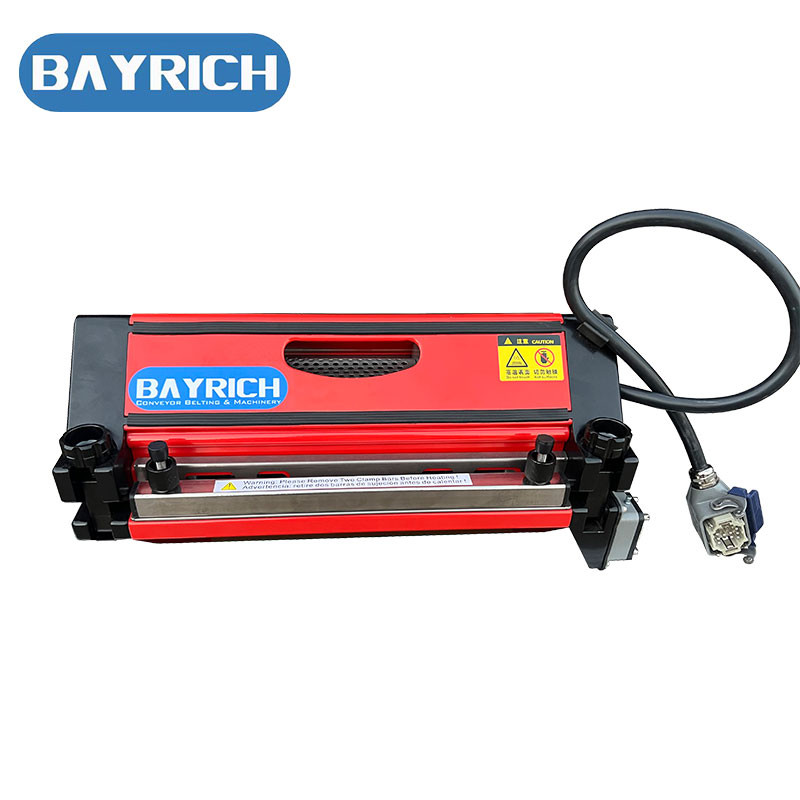

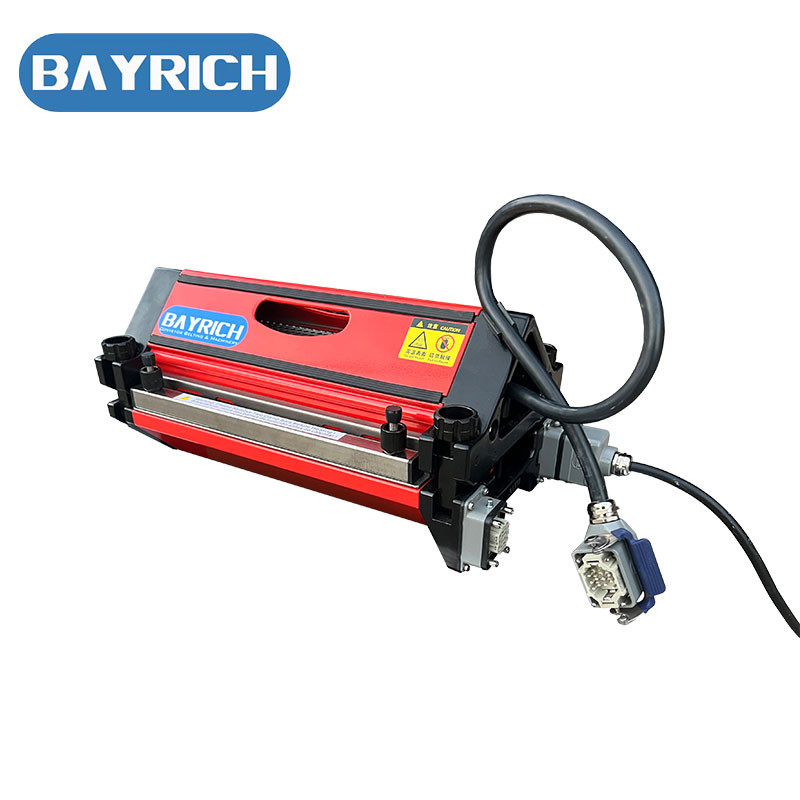

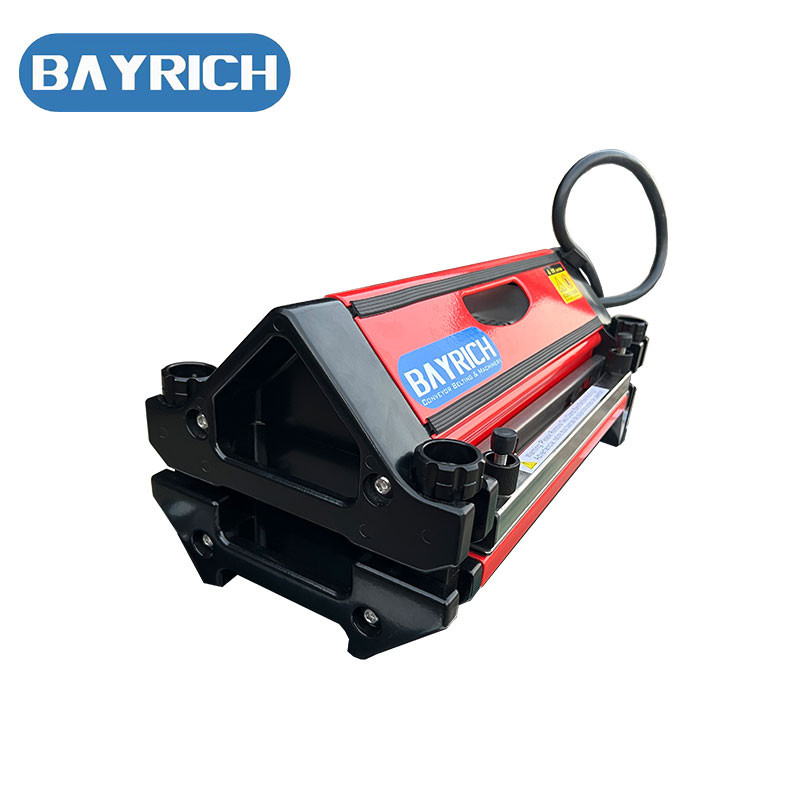

The BAYRICH air-cooled belt splicing press (PA Series) is an all-in-one hot press for on-site splicing of PVC, PU, PVK and other thermoplastic conveyor belts.

PU PVC Conveyor Belt Air-Cooled Belt Splicing Press

PA Series · All-in-One Air Cooling · For PVC / PU / PVK Thermoplastic Belts

Effective length 300 – 1800 mm (6 models) · Up to 200 °C · All-in-one air cooling · Flight case

▎Introduction

1 portable air cooled press machine.jpg

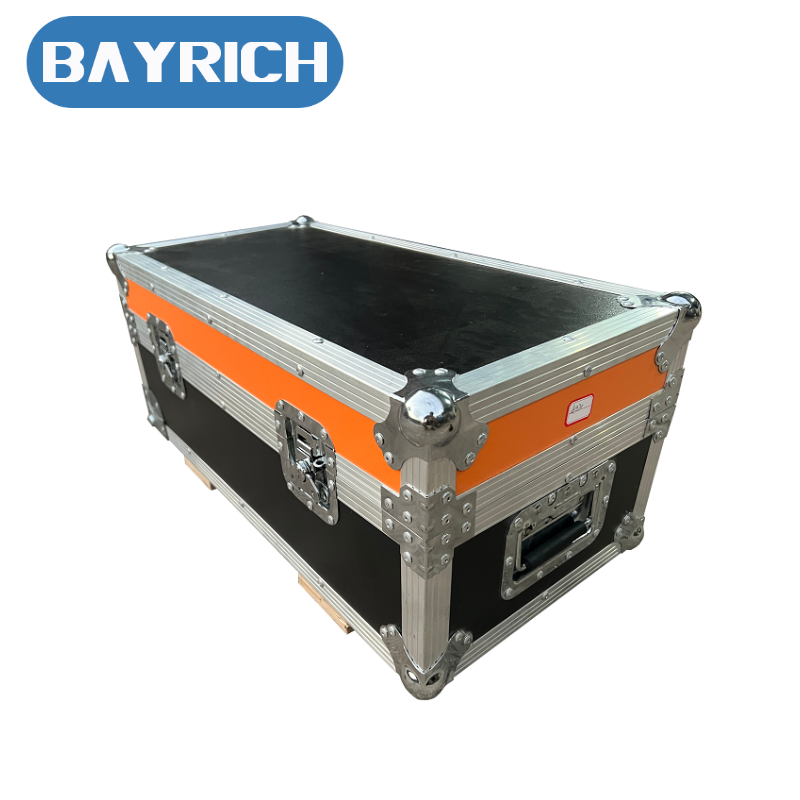

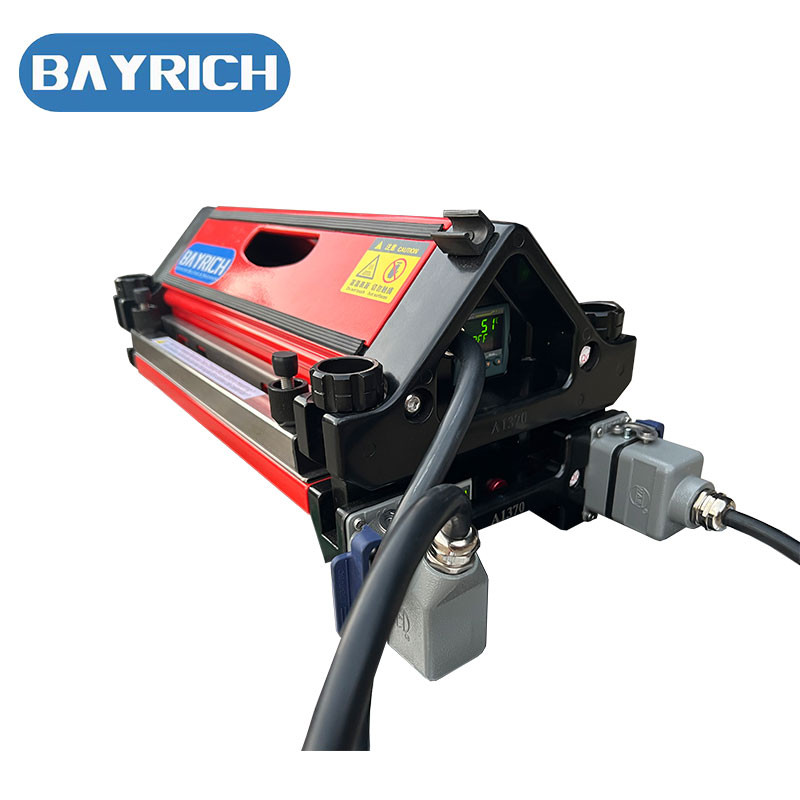

The BAYRICH air-cooled belt splicing press (PA Series) is an all-in-one hot press for on-site splicing of PVC, PU, PVK and other thermoplastic conveyor belts. Heating, pressing and cooling are integrated in a single unit with a built-in air compressor and air-cooling system — no external water pump or compressor is required; simply connect to power. A Eurotherm (UK) temperature controller and an SMC (Japan) pressure controller deliver precise control, with a complete splice cycle of about 9–12 minutes. Supplied with a flight case and castors, it can be moved and operated by one person, and is widely used for installing and repairing lightweight belts in food, logistics and packaging.

▎Technical Data

Model	PA300	PA600	PA900	PA1200	PA1500	PA1800H
Effective length	300 mm	600 mm	900 mm	1200 mm	1500 mm	1800 mm
Effective width	130 mm	130 mm	130 mm	130 mm	130 mm	130 mm
Upper/lower weight	10 / 11 kg	16 / 13 kg	20 / 18 kg	28.5 / 25.5 kg	30 / 30 kg	64 / 48 kg
Net weight	21 kg	30 kg	38 kg	54 kg	62 kg	121 kg
Dimensions (mm)	505×250×220	805×250×220	1105×250×225	1405×250×225	1705×250×225	2005×250×255
Max. pressure	2 bar / 28 PSI	2 bar / 28 PSI	2 bar / 28 PSI	2 bar / 28 PSI	2 bar / 28 PSI	2 bar / 28 PSI
Max. temp.	200 °C / 390 °F	200 °C / 390 °F	200 °C / 390 °F	200 °C / 390 °F	200 °C / 390 °F	200 °C / 390 °F
Power	1.2 kW	3.2 kW	4.5 kW	5.8 kW	7.0 kW	9.0 kW
In flight case	35 kg	50 kg	65 kg	78 kg	86 kg	158 kg
In wooden case	50 kg	72 kg	89 kg	104 kg	115 kg	169 kg
Packing size (mm)	790×430×420	1090×430×420	1390×430×420	1720×450×430	1990×430×420	2130×450×520

▎Key Features

● All-in-one—built-in compressor + air cooling; no external pump needed	● Fast cycle—heating + cooling in about 9–12 minutes
● Precise control—Eurotherm temperature + SMC pressure control	● Portable & full range—flight case, castors; 300–1800 mm coverage

▎Materials & Industries

Materials: PVC, PU and PVK belts, plus other thermoplastic belting; widely used in food, packaging, logistics and textile industries.

▎Splicing Procedure

1. Cut both belt ends into finger shape;	2. Lay the belt on the lower platen and close/lock the upper platen;
3. Set temperature/time, then apply pressure and heat until the faces melt;	4. Stop heating; after air cooling, open the press and trim the splice.
