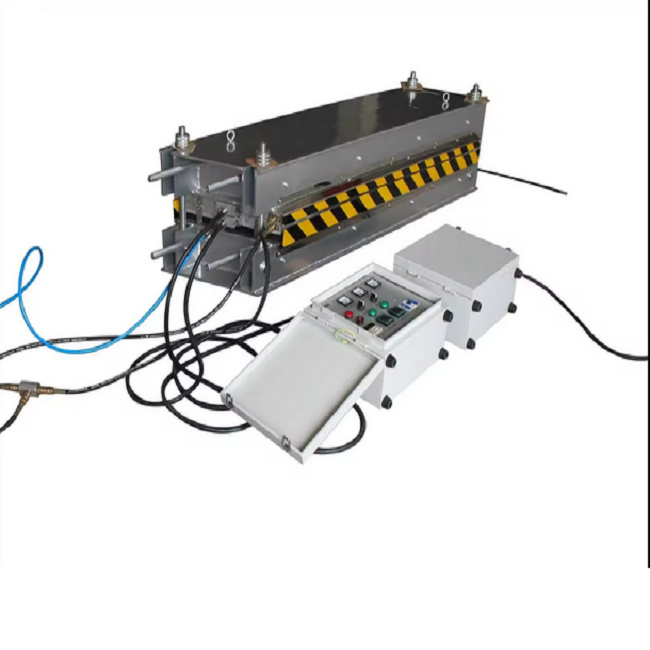

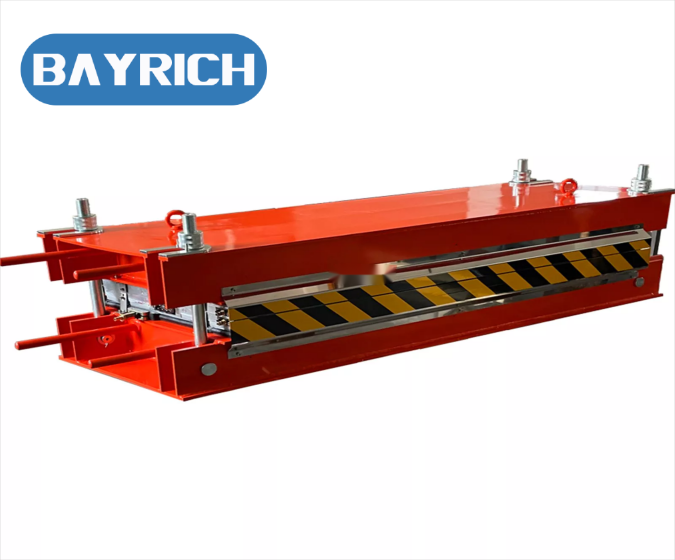

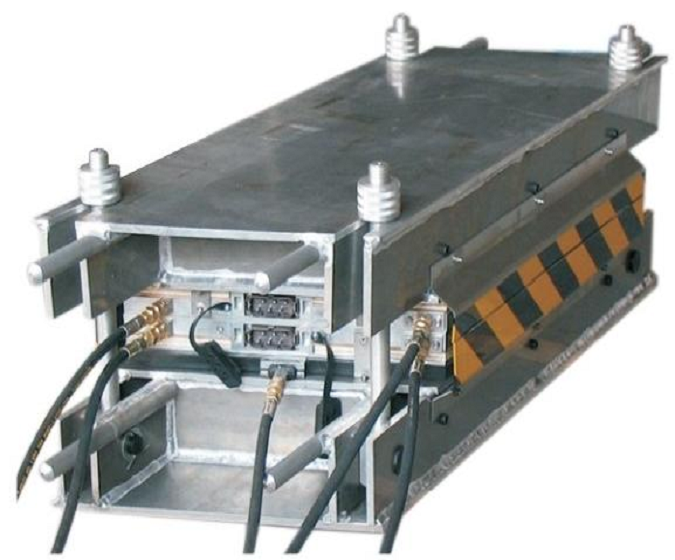

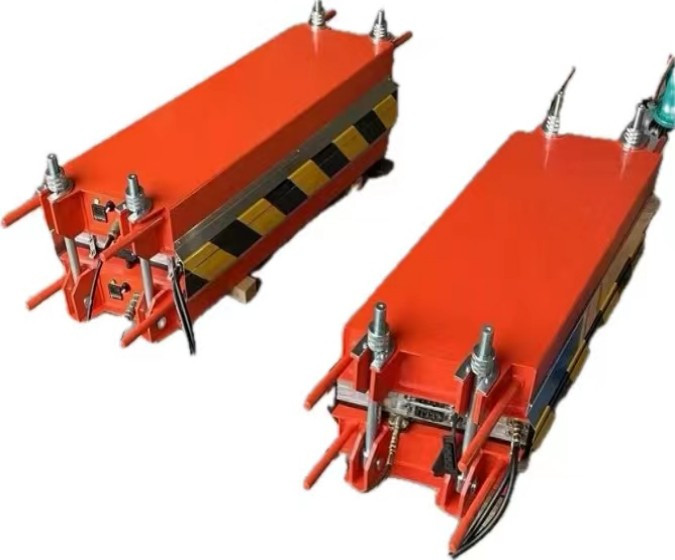

BAYRICH Integrated Rubber Belt Vulcanizing Press (EPN-TW Series) uses a one-piece aluminium frame with a two-piece (upper / lower) structure, ready to use out of the box — no on-site beam assembly.

Belt Fabrication Equipment

Integrated Rubber Belt Vulcanizing Press

EPN-TW Series · One-Piece Aluminium Frame · Two-Piece Design

Belt width 405 – 2150 mm · Up to 160 °C · 100 PSI · Built-in fast cooling

▎Introduction

BAYRICH Integrated Rubber Belt Vulcanizing Press (EPN-TW Series) uses a one-piece aluminium frame with a two-piece (upper / lower) structure, ready to use out of the box — no on-site beam assembly. A pressure-bag system and flexible silicone heating elements conform to uneven belt surfaces for dense, void-free and crack-free splices. Water pump and water tank cooling equipment is needed, shortening the vulcanizing cycle. The E4P-RS control panel manages temperature and time, with data logging and USB export (touch screen optional). Both rectangular (straight) and rhomboid (diagonal) splice profiles are available, and several units can be used side by side for longer splices. Widely used for belt splicing and repair in mining, ports, power plants and cement plants.

▎Technical Data

Item	Specification
Structure	One-piece aluminium frame, two-piece (upper / lower) design
Belt width	405 – 2150 mm
Platen size	355 × 450 mm to 710 × 2440 mm
Max. working pressure	100 PSI (7 bar)
Max. temperature	163 °C (325 °F)
Heating element	Flexible silicone platen, conforms to the belt surface
Pressure system	Pressure Bag for uniform pressure
Cooling	Built-in fast cooling in the platen; no external unit
Control	E4P-RS panel (temp / time / data logging / USB; touch screen optional)
Power supply	230V, 1-phase or 3-phase
Total weight	64 – 720 kg (by model)
Splice profile	Rectangular (straight) / rhomboid (diagonal)

▎Model Range (Selection)

Model	Platen (mm)	Belt Width	Weight	Dimensions L×W×H (mm)
EPN1930-TW	480 × 760	600 mm	161 kg	1460 × 495 × 405
EPN2837-TW	710 × 940	800 mm	230 kg	1640 × 708 × 455
EPN2847-TW	710 × 1220	1000 mm	284 kg	1920 × 708 × 480
EPN2856-TW	710 × 1420	1200 mm	375 kg	2120 × 708 × 560
EPN2864-TW	710 × 1625	1400 mm	435 kg	2325 × 708 × 635
EPN2884-TW	710 × 2135	1850 mm	698 kg	2835 × 708 × 750

Note: model numbers are in inches (e.g. 19 = 480 mm platen width, 56 = 1420 mm platen length); 355 / 455 / 660 mm platen widths also available; custom sizes on request.

▎Key Features

● One-piece frame—two-piece upper / lower, ready out of the box	● Pressure Bag—uniform pressure over the full area; no voids or cracks
● Flexible platen—silicone elements conform to the belt for even heat	● Built-in cooling—integrated in the platen; no external unit needed

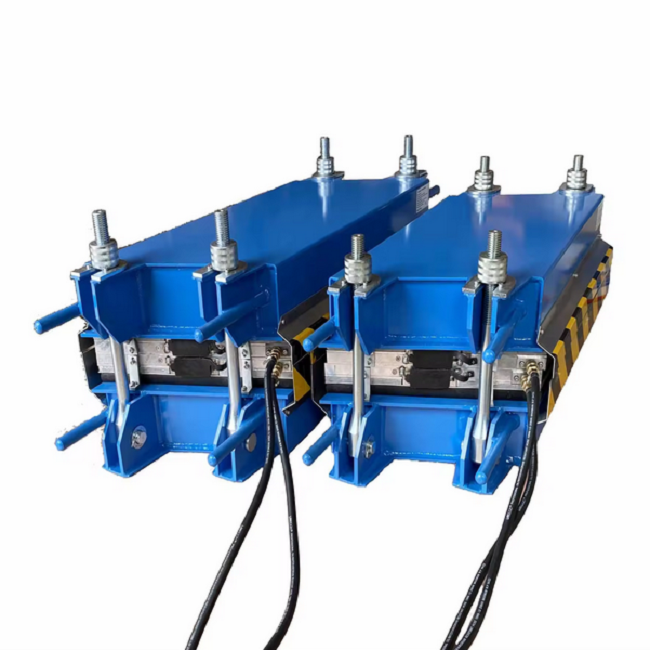

● Splice options—rectangular straight / rhomboid diagonal	● Side-by-side—multiple units extend the splice length

▎Vulcanizing Procedure

1. Mark the splice centre line; buff, skive and apply cement;	2. Lay the lower platen and pressure bag; position the splice;
3. Fit the upper platen, install the frames and clamp;	4. Inflate to 100 PSI and heat to 145–155 °C;
5. Dwell for the time set according to belt thickness;	6. Start built-in cooling; strip below 70 °C and trim.
