Splicing Press Machine

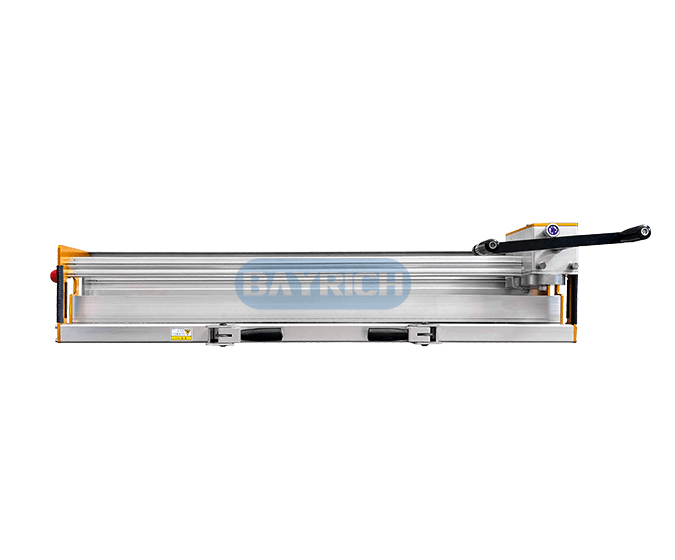

Lightweight Conveyor Belt Roller Lacer

A conveyor belt fastener roller lacer is a tool used for fastening conveyor belts. It typically consists of a roller mechanism that helps in efficiently joining or repairing conveyor belt sections. The roller design ensures consistent and secure fastening, often by aligning and pressing fasteners into the belt material to create a strong connection. This tool is essential in industries where conveyor belts are widely used, such as manufacturing and logistics, to maintain the functionality and durability of the conveyor system.

Belt Fabrication Equipment

Roller Lacer

Mechanical Belt Fastening for Lightweight Conveyor Belts

Compatible with Clipper Wire Hook / Alligator Lacing / Alligator Staple fasteners · Models SC350 – SC1500

▎Introduction

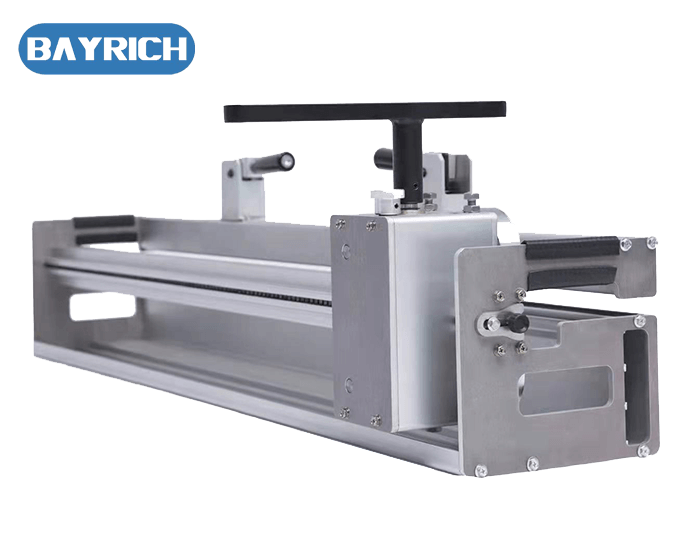

BAYRICH Roller Lacer is a mechanical belt-fastening machine that presses steel fasteners evenly into the belt by means of a roller. It is designed for fast splicing and on-site repair of lightweight conveyor belts such as PVC / PU / PVK. Compared with hot or cold vulcanized splicing, mechanical

fastening needs no vulcanizing press or bonding materials — it is simple to operate, ready at any time and can be repeatedly opened and re-

joined, making it ideal where belts are hard to replace, equipment is

hard to dismantle or downtime is short. A high-strength steel body and

linear guide rails ensure smooth, stable head movement, while quick-

change square molds cover a wide range of fastener types and belt

widths.

▎Technical Data

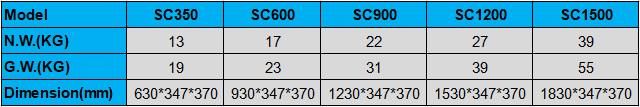

Model	Length	Width	Height	Net Weight	Packing Weight	Packing Size (L×W×H)
SC350	512 mm	290 mm	300 mm	9 kg	19 kg	620×355×400 mm
SC600	803 mm	290 mm	300 mm	13 kg	25 kg	930×355×400 mm
SC900	1010 mm	290 mm	300 mm	15 kg	31.5 kg	1180×355×400 mm
SC1200	1380 mm	290 mm	300 mm	20 kg	34 kg	1450×355×400 mm
SC1500	1680 mm	290 mm	300 mm	25 kg	41 kg	1780×355×400 mm

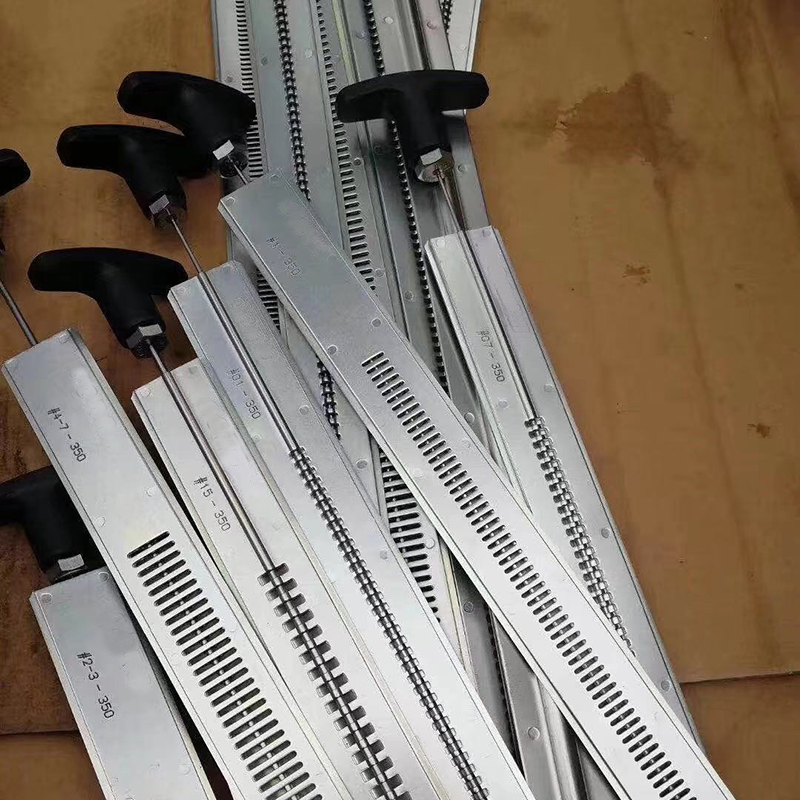

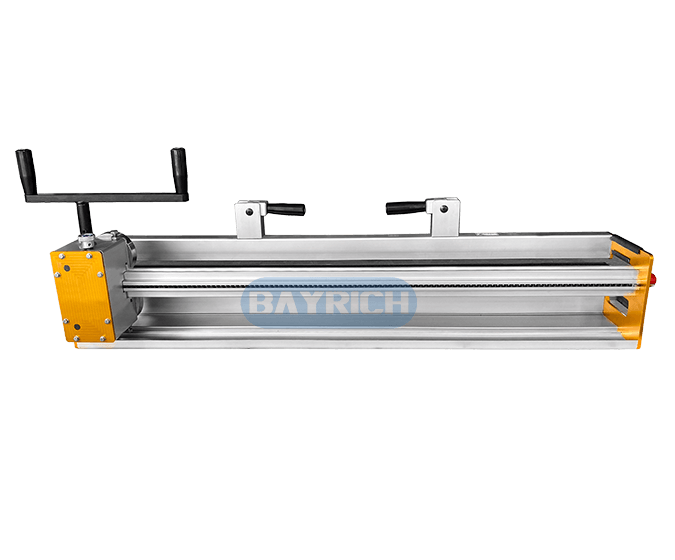

Standard accessories: 4 molds. The body holds up to 7 square-slot molds, selected by fastener type. The open-end design allows continuous lacing on wider belts.

▎Fastener Types

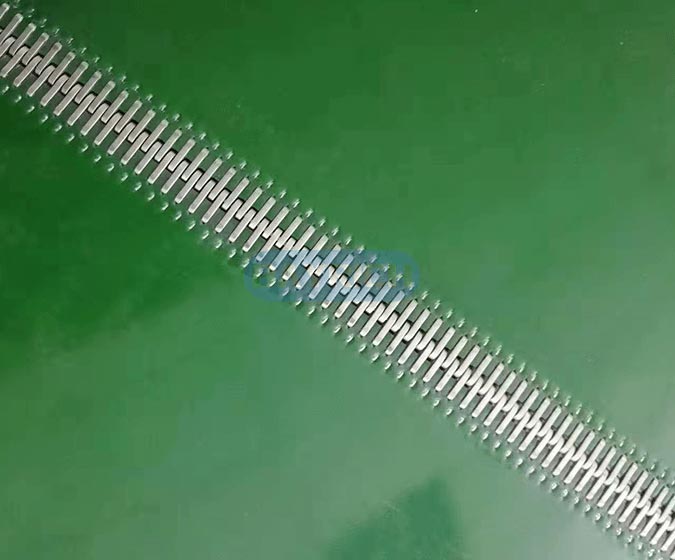

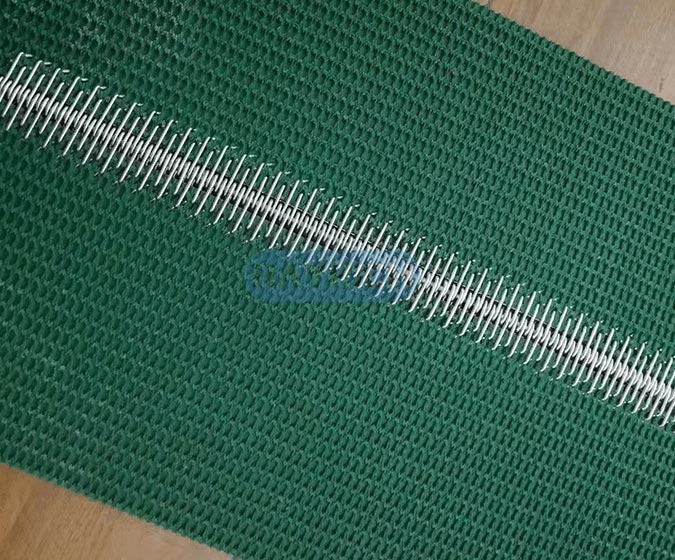

●Clipper Wire Hook—low-profile, flexible joint	● Alligator Lacing—suited to thicker lightweight belts
●Alligator Staple—fast installation	● Versatile compatibility—roller / plate / wire hook fasteners

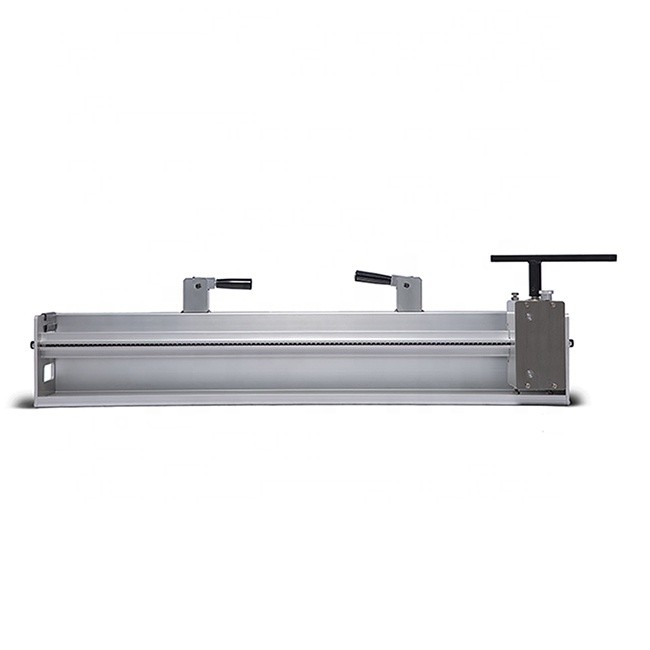

▎Key Features

● High-speed splicing—mechanical fastening cuts downtime vs. vulcanizing	● Tool-free mold change—knob locking, changed in seconds
● Smooth guidance—linear rails + wear-resistant nylon, no head wobble	● Open-end design—continuous lacing on extra-wide belts
● Lightweight & portable—SC350 weighs only 9 kg; one-man operation	● Heavy-duty build—high-strength steel for workshop and field use

▎Applications

● Food & beverage—hygienic, efficient belt splicing

● Packaging—carton, bag and parcel conveyor lines

● Logistics & warehousing—sorting and handling

systems

● Manufacturing—lightweight conveyor belt maintenance

▎Operating Procedure

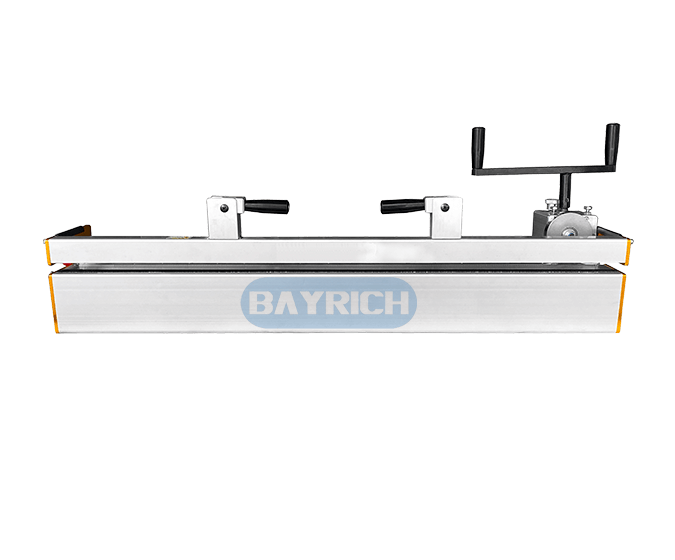

1. Cut both belt ends square and straight;	2. Adjust the head knob so the roller gap exceeds the V-opening of the fastener; move the head right to leave loading space;
3. Insert the matching mold and lock both end stops;	4. Insert fasteners into the mold holes and push the string pin through the center;
5. Feed the belt bonding surface into the V-opening and press down the clamp handle;	6. Move the head onto the belt and turn the knob until the fastener is fully flattened.

▎Maintenance

Handle with care to avoid frame distortion; keep the rail grooves and pressure rollers clean; wipe the body after each use, return it to the case and store in a dry place; never stack heavy objects on the rails.

Specifications are subject to change without notice. OEM / ODM available.
