Splicing Press Machine

Water Cooling PU PVC Conveyor belt Splicing Press Machine

BAYRICH Water-Cooled Belt Splicing Press uses high temperature, pressure and water-cooling technology to hot-splice PVC, PU, PE and other light thermoplastic conveyor belts.

Bayrich Belt Fabrication Equipment

Water-Cooled Belt Splicing Press

For PVC / PU / PE Light Conveyor Belts

Belt width 600 – 4200 mm · Platen width 150 / 200 mm · Fully automatic water cooling

▎Introduction

1Water cooled press Machine.png

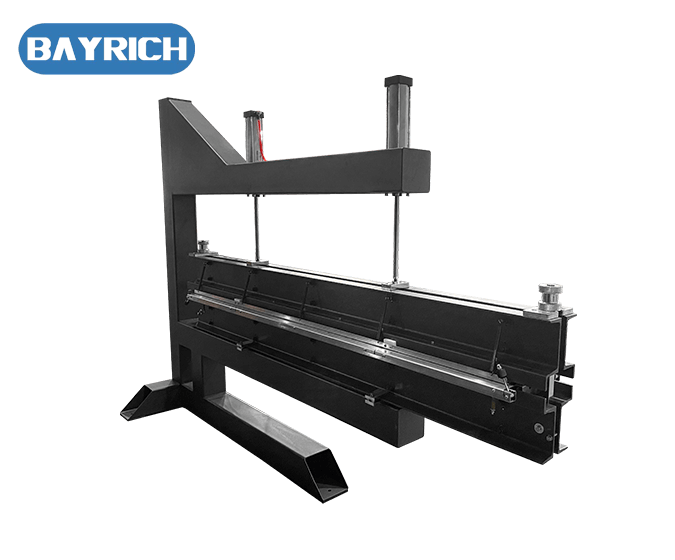

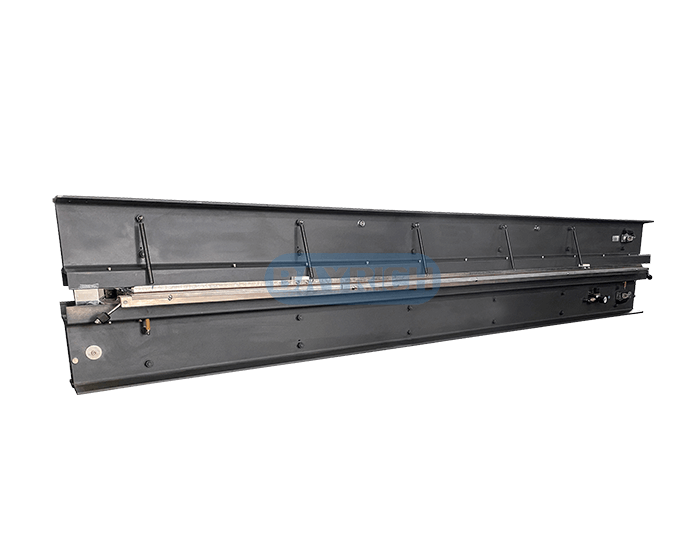

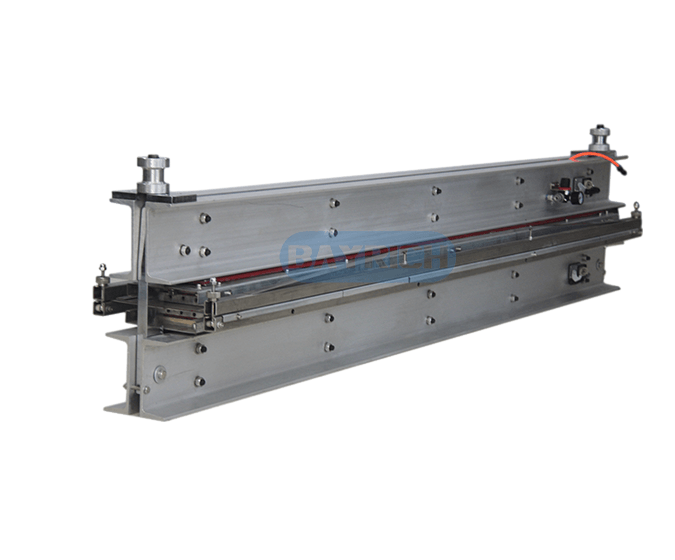

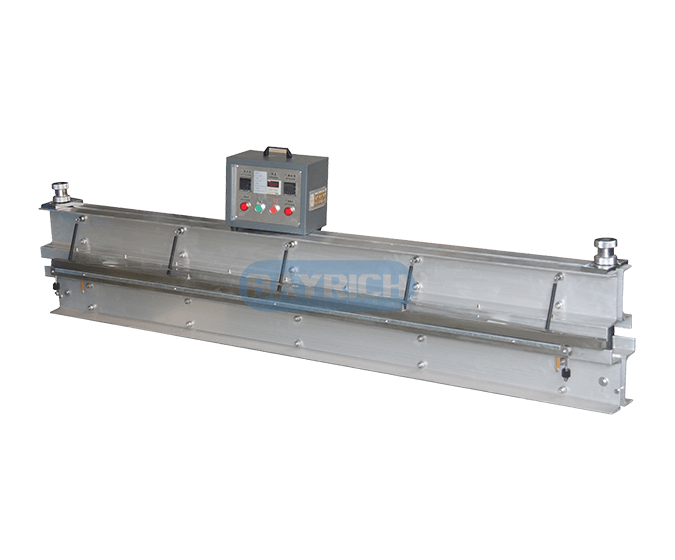

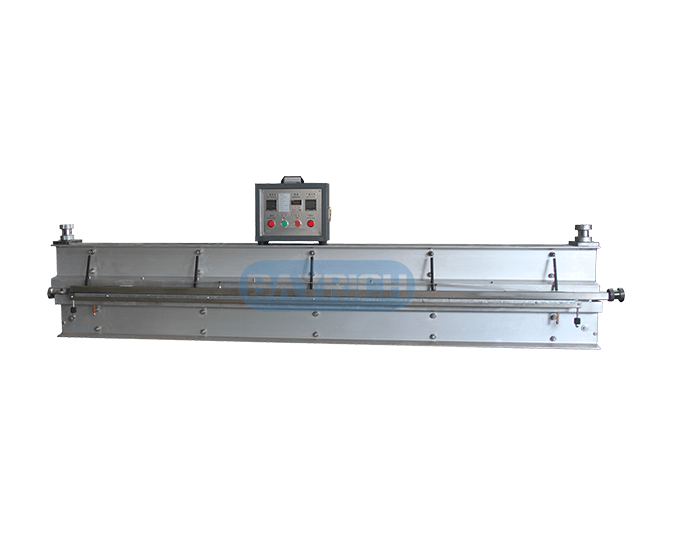

BAYRICH Water-Cooled Belt Splicing Press uses high temperature, pressure and water-cooling technology to hot-splice PVC, PU, PE and other light thermoplastic conveyor belts. Each aluminium platen integrates heating elements, cooling pipes and temperature probes; with airbag pressure and clamping bars, the control box automatically completes pressing, heating, dwell and cooling. Compared with air-cooled presses, the water-cooled machine has a stronger body and can be built much wider, with a 150 mm or 200 mm heating surface — better suited to long tooth and finger-over-finger splices. A complete splice cycle takes about 30–45 minutes. It is widely used for belt installation and repair in food, packaging, logistics, textile and airport baggage handling.

▎Technical Data

Item	Specification
Belt type	PVC / PU / PE and other light thermoplastic belts
Belt width	600 – 4200 mm
Platen width	150 mm / 200 mm (optional)
Heating temperature	Up to 180 °C (adjustable, max. 200 °C)
Working pressure	Pneumatic, 0 – 0.3 MPa (airbag)
Heat-up time	Approx. 15 – 20 min (to 180 °C)
Cool-down time	Approx. 3 – 5 min (180 → 60 °C)
Cycle time	Approx. 30 – 45 min
Body material	Aluminium alloy (stainless steel for wide models)
Power supply	220V / 380V (customizable)
Control	Automatic control box (pressure / heating / dwell / cooling)

▎Water-Cooled vs. Air-Cooled

Parameter	Water-Cooled	Air-Cooled
Max. belt width	600 – 4200 mm	Usually ≤ 2100 mm
Body	Aluminium / stainless; stronger	Aluminium; lightweight
Cycle time	Approx. 30 – 45 min	Approx. 9 – 15 min
Best for	Wide belts, fixed station, batch work	Narrow belts, on-site repair

▎Key Features

● Fast water cooling—180 → 60 °C in about 3–5 minutes	● Wide coverage—600 – 5200 mm, beyond air-cooled capability
● Stronger build—aluminium / stainless body, 10–15 years of service	● Fully automatic—pressing, heating, dwell and cooling in one cycle
● Wider heating surface—150 / 200 mm for long tooth and finger splices	● More economical—lower cost than an air-cooled press of the same size

▎Splicing Procedure

1. Cut both belt ends into finger shape by finger punching machine and mark the splice line and angle;	2. Lay the belt on the lower platen, fit the upper platen and clamp;
3. Connect power and water; set temperature, time and pressure;	4. Apply pressure and heat to the set temperature, then dwell;
5. Start water cooling; open below 60 °C and trim the splice.
