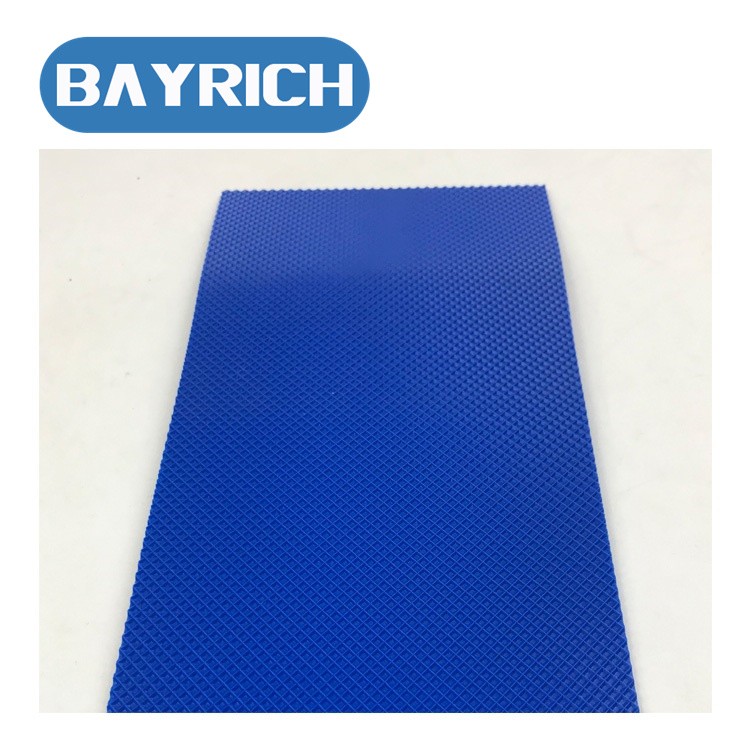

2/20 D/P B

* PRODUCT INFORMATION *

Top Cover Material：

PVC

Number of plies：

2

Surface texture :

diamond

Color:

blue

Base structure :

Strong polyester fabric /,low noise

*TECHNICAL DATA*

Total thickness(mm)：

2.0

Top Coating thickness(mm)：

0.5

Weight（Kgs/㎡）：

2.3

Maximum width（mm）：

3000

Force elongation at 1%（N/mm）：

8

Top hardness（Shore A）:

75A

Permissible temperature（℃）：

-10/+80

Maximum tensile strength[N/mm]；

120

Mini Pulley Positive（mm）:

40

Mini Pulley reverse（mm）:

60

Food grade：

NO

Anti static：

YES

Other characteristic:

Low noise

* PRODUCT APPLICATION INDUSTRY *

 Food,logistic ,treadmill Industry,etc
